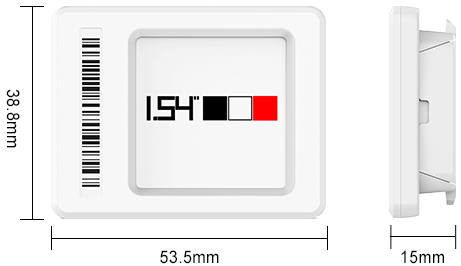

• Dimension(mm): 53.5*38.8*15 /2.1*1.53*0.59 inch

    Weight: 26 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 26.9x26.9mm/1.54inch

    Resolution: 200 × 200 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY

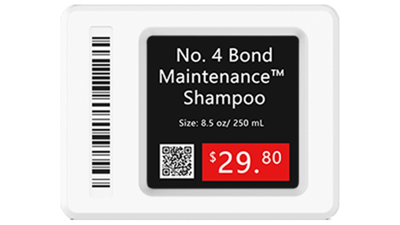

    LITE SERIES 1.54"

    DATA SHEET

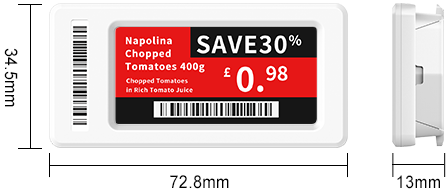

  • LITE SERIES 2.13"

    Dimension(mm): 572.8*34.5*13/ 2.86*1.36*0.51inch

    Weight: 33 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 48x23.1mm/2.13inch

    Resolution: 250 × 122  pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

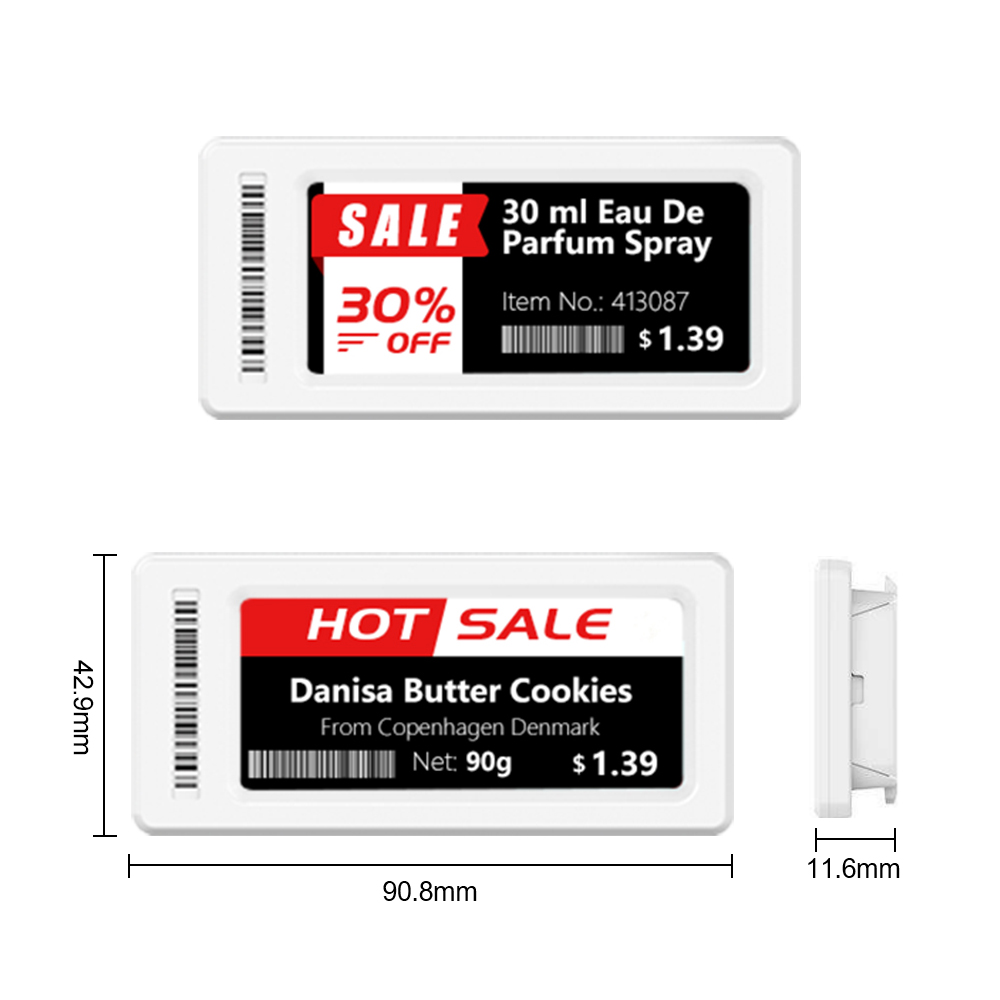

  • LITE SERIES 2.66"

    DATA SHEET

    Dimension(mm): 90.8×42.9*13

    Weight: 36 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 59.5x30.1mm/2.66inch

    Resolution: 296× 152 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY

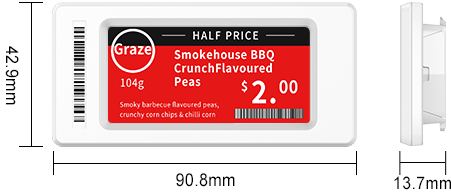

  • LITE SERIES 2.9"

    DATA SHEET

    Dimension(mm): 90.8*42.9*13.7 /3.57*1.69*0.54 inch

    Weight: 45 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 66.3x28.5mm/2.9inch

    Resolution: 296 × 128 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY

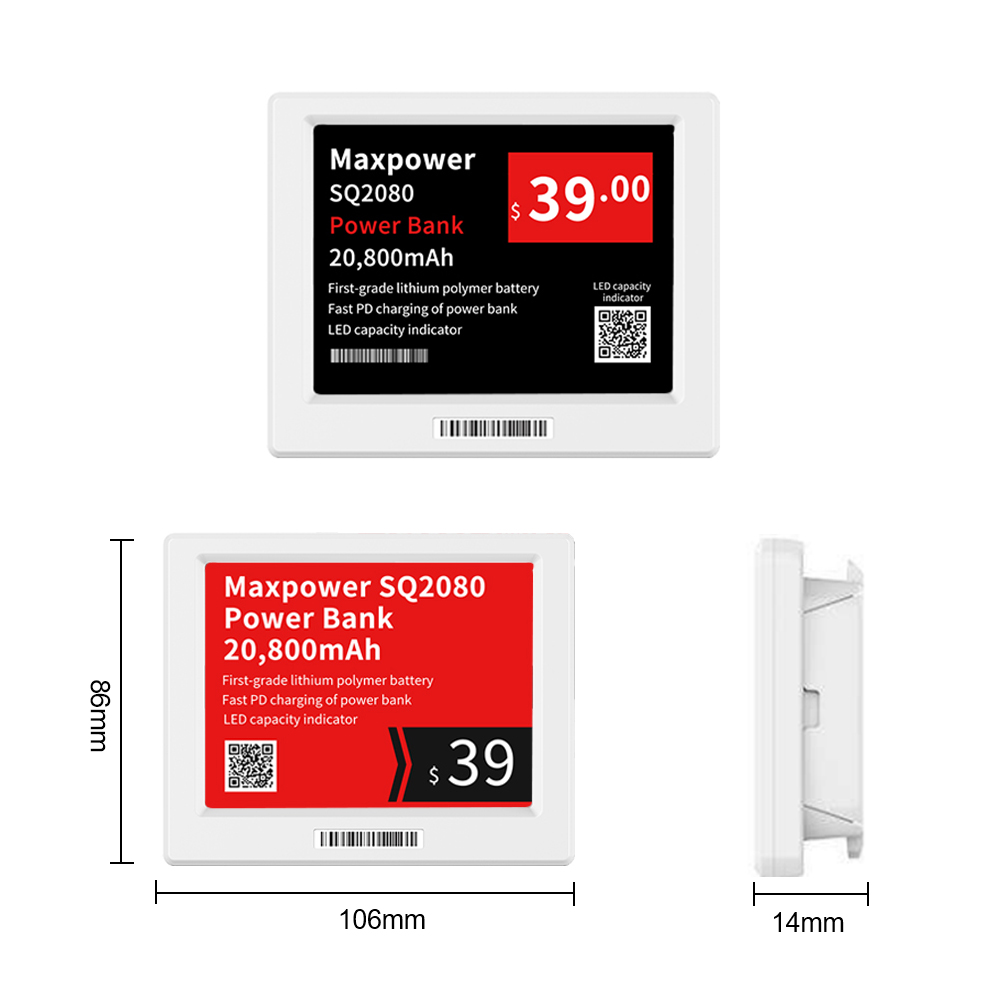

  • LITE SERIES 4.2"

    Dimension(mm): 106*86*13/2.1*1.53*0.59 inch

    Weight: 83 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 84.2x63mm/4.2inch

    Resolution: 400 × 300 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

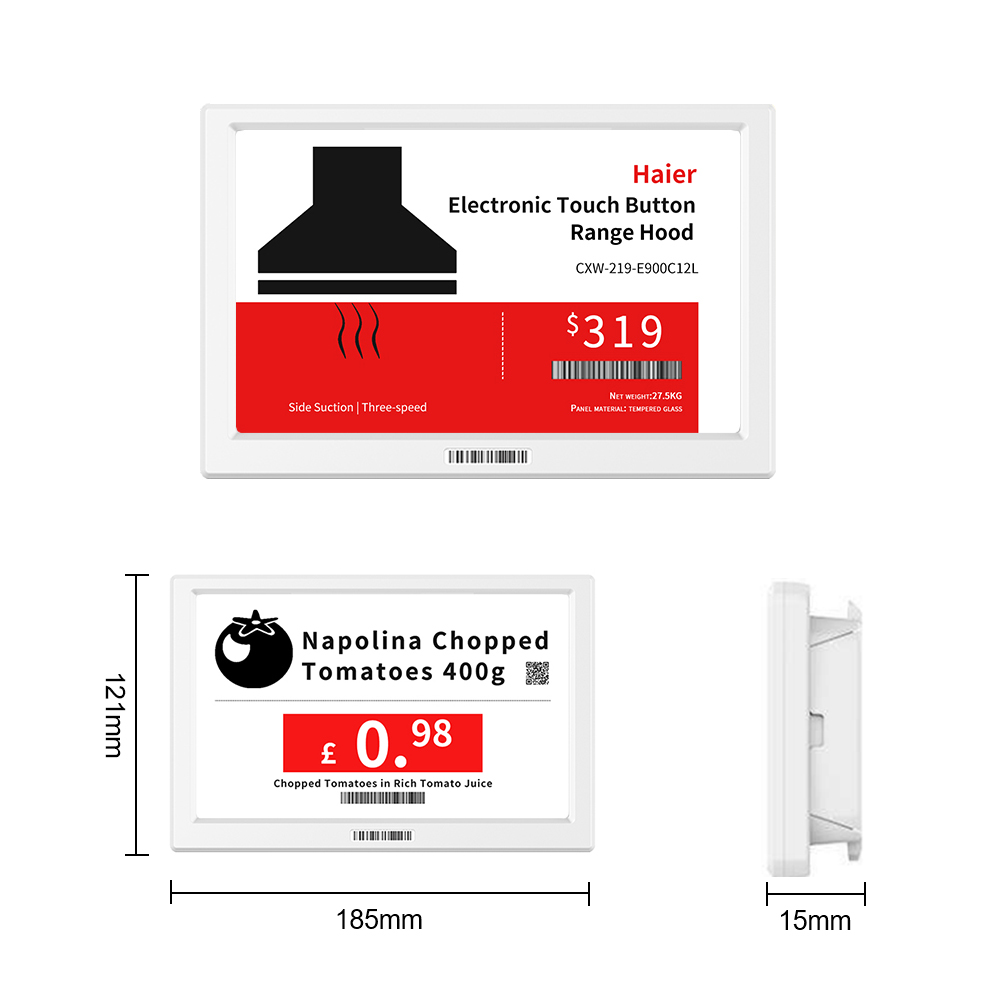

  • LITE SERIES 7.5"

    Dimension(mm): 183*118*11.2 /7.2*4.65*0.44inch

    Weight: 200 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 162.6x97.3mm/7.5inch

    Resolution: 200 × 200 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

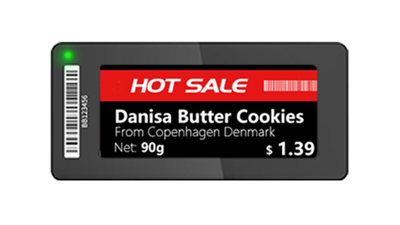

  • SLIM SERIES 2.13"

    Dimension(mm): 71*34.5*11.2/2.79*1.36*0.44 inch

    Weight: 33 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: 7 colors LED

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 48x23.1mm/2.13inch

    Resolution: 250 × 122  pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET
  • SLIM SERIES 2.66"

    DATA SHEET

    Dimension(mm): 90.7×42.8*11.2

    Weight: 39 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: 7 colors LED

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 59.5x30.1mm/2.66inch

    Resolution: 296× 152 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY

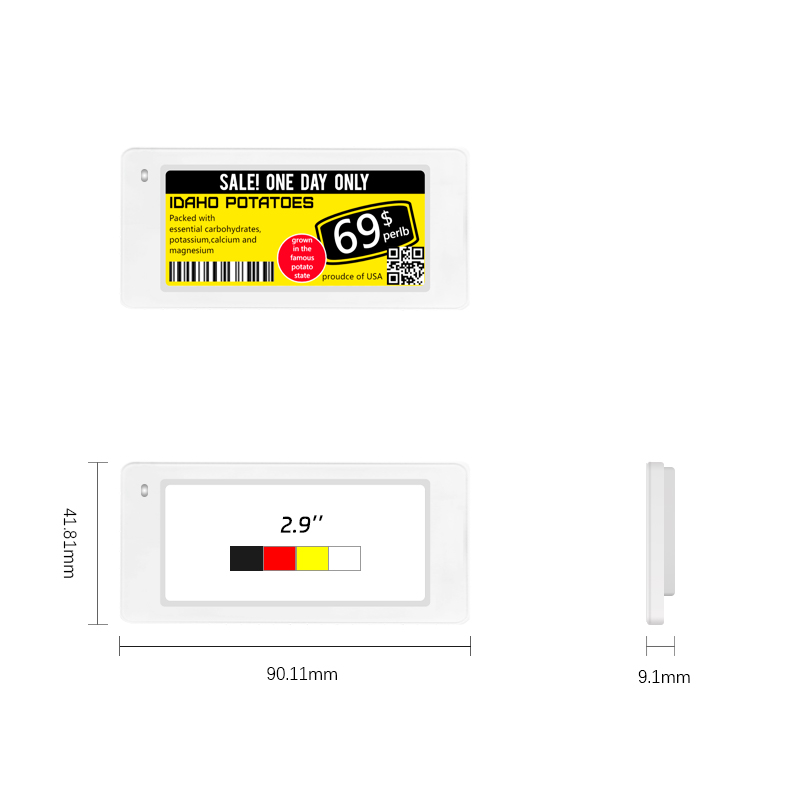

  • SLIM SERIES 2.9"

    DATA SHEET

    Dimension(mm): 90*42*11.2 /3.54*1.65*0.44inch

    Weight: 40 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: 7 colors LED

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 66.3x28.5mm/2.9inch

    Resolution: 296 × 128 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY

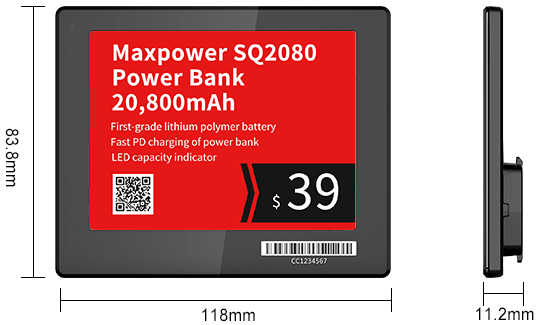

  • SLIM SERIES 4.2"

    Dimension(mm):  118*83.8*11.2 /4.65*3.3*0.44inch

    Weight: 83 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: 7 colors LED

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 84.2x63mm/4.2inch

    Resolution: 400 × 300 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

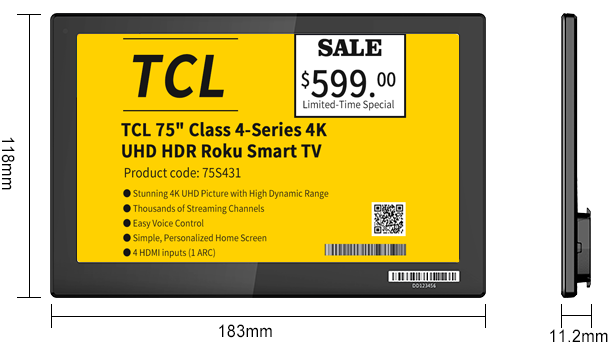

  • SLIM SERIES 7.5"

    Dimension(mm): 183*118*11.2 /7.2*4.65*0.44inch

    Weight: 200 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: none

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 162.6x97.3mm/7.5inch

    Resolution: 640× 384 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

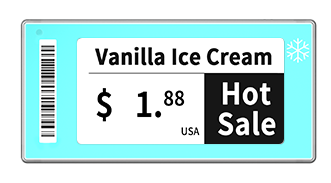

  • FREZZER SERIES 2.66"

    Dimension(mm): 85.9*41.9*9.1

    Weight: 28 g

    Temperature: from + 0 C° to + 40 C°

    Updating time: up to 21.000 labels per hour

    Ingress protection grade: IP53

    LED indicator: 7 colors LED

    Display Technology: e-ink bi-stable graphic

    Active display area (mm): 59.5x30.1mm/2.66inch

    Resolution: 296× 152 pixel

    DPI: 183 Pixel

    Colors: BW/BWR/BWY



    DATA SHEET

LITE SERIES

SLIM SERIES

2.4GHz Gateway

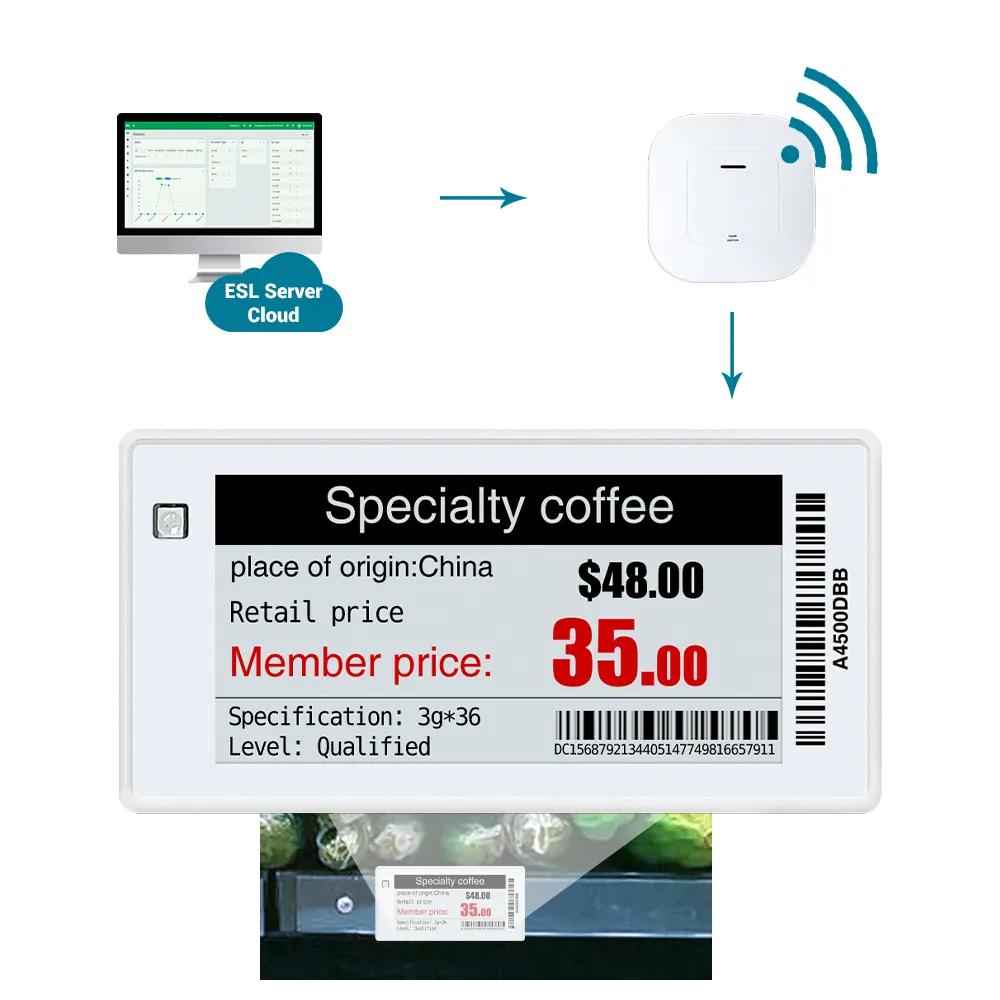

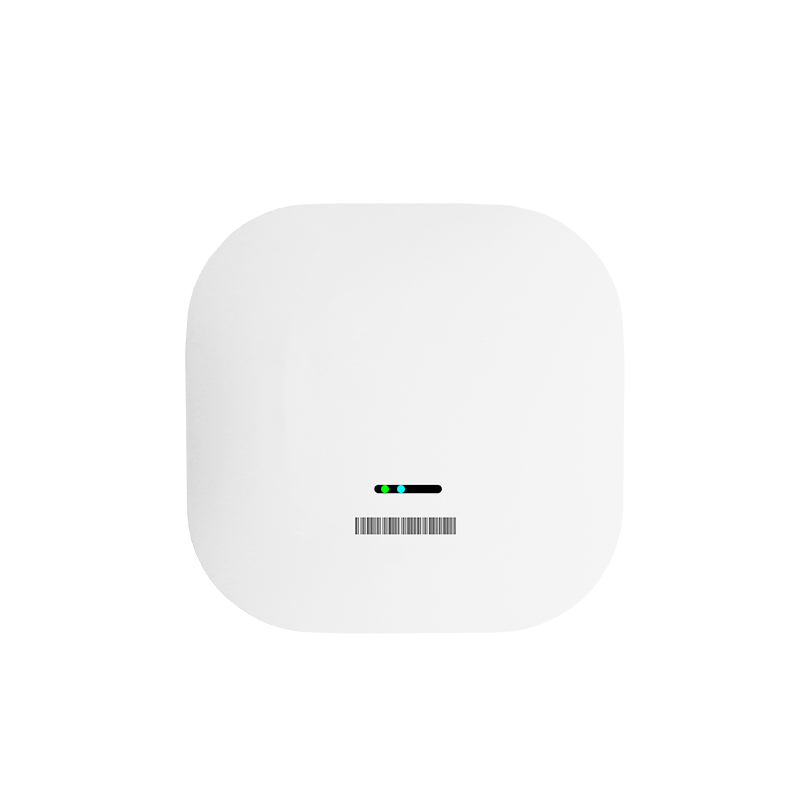

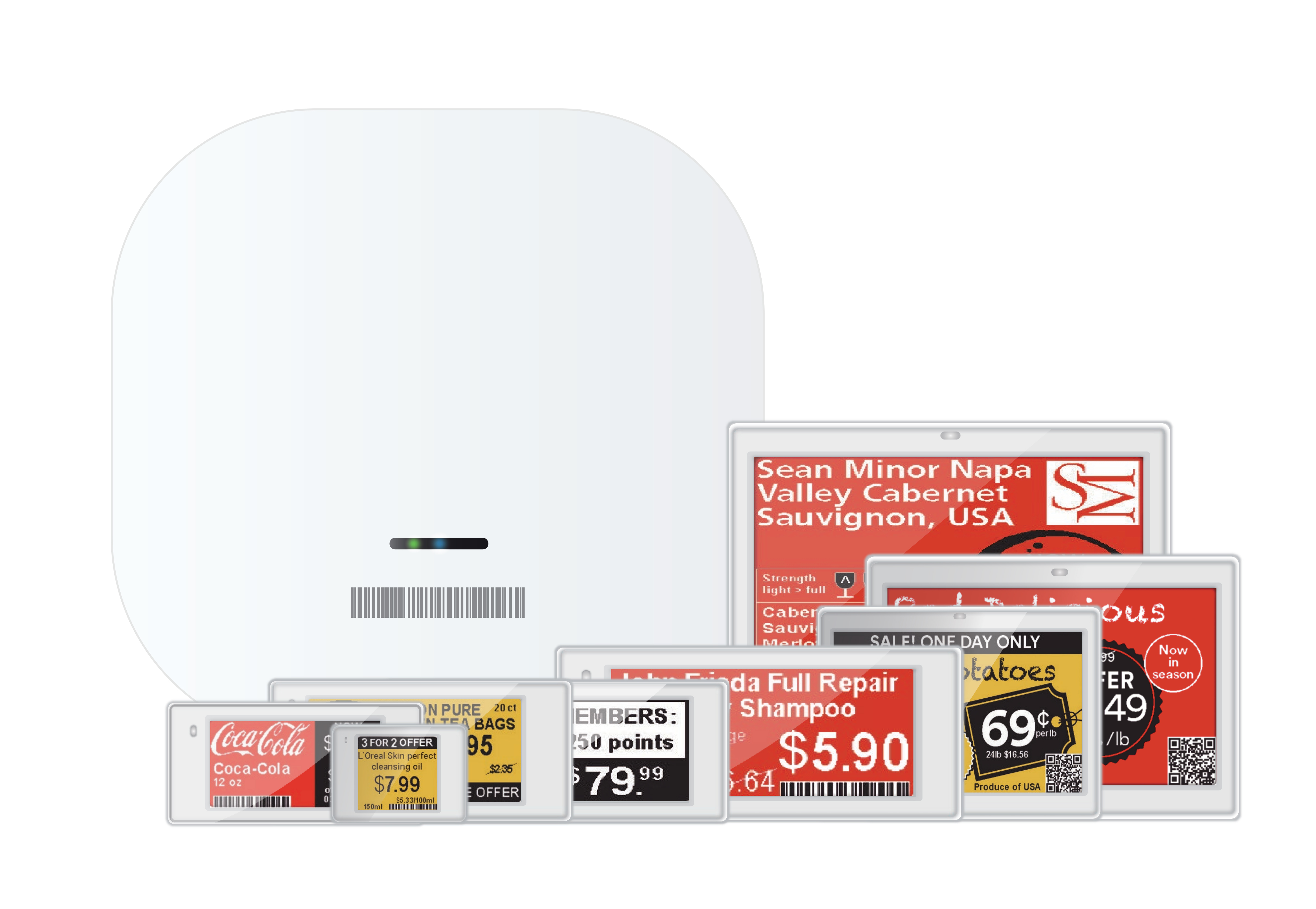

  • Central Signal Gateway

    Operating Voltage:4.8-5.5V

    Power interface:USB Type-C

    Protocol:Zigbee/Private

    Operate Temperature:-10~60°C

    Service life:5-10 years



    Features

    Communicate to ESL units automatically in the initial setting

    High-speed bi-directional communication

    Simple installation, plug & play High capacity and wide coverage



    2.4GHz + 5GHz Base Station

    DATA SHEET
  • USB AP+

    For Gateway Signal Stronger

    Size:118.7*30.8*10.7mm

    Operating Voltage:4.8-5.5V

    Power interface:USB

    Protocol:Zigbee/Private

    Operate Temperature:-10~60°C

    Service life:5-10 years



    DATA SHEET

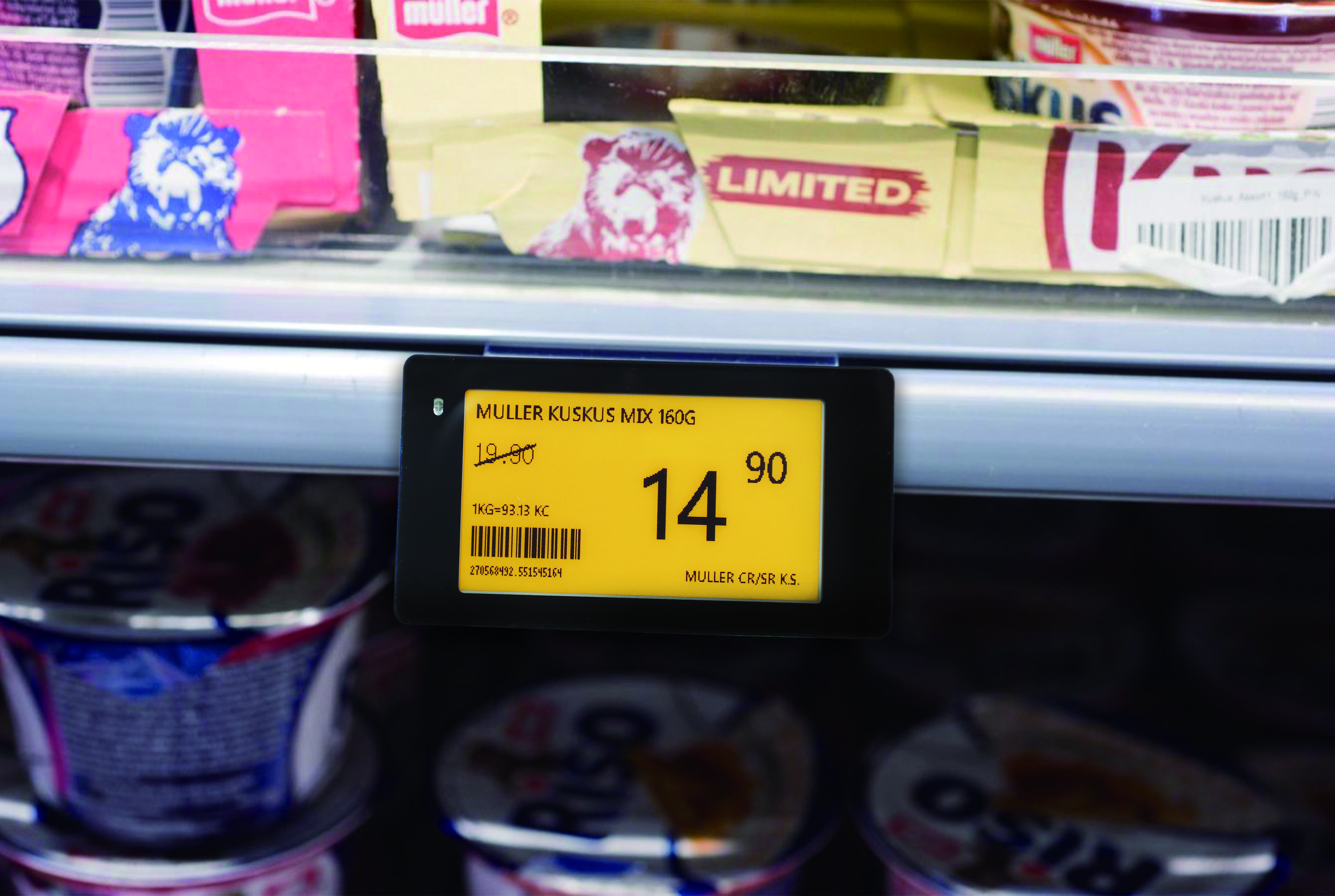

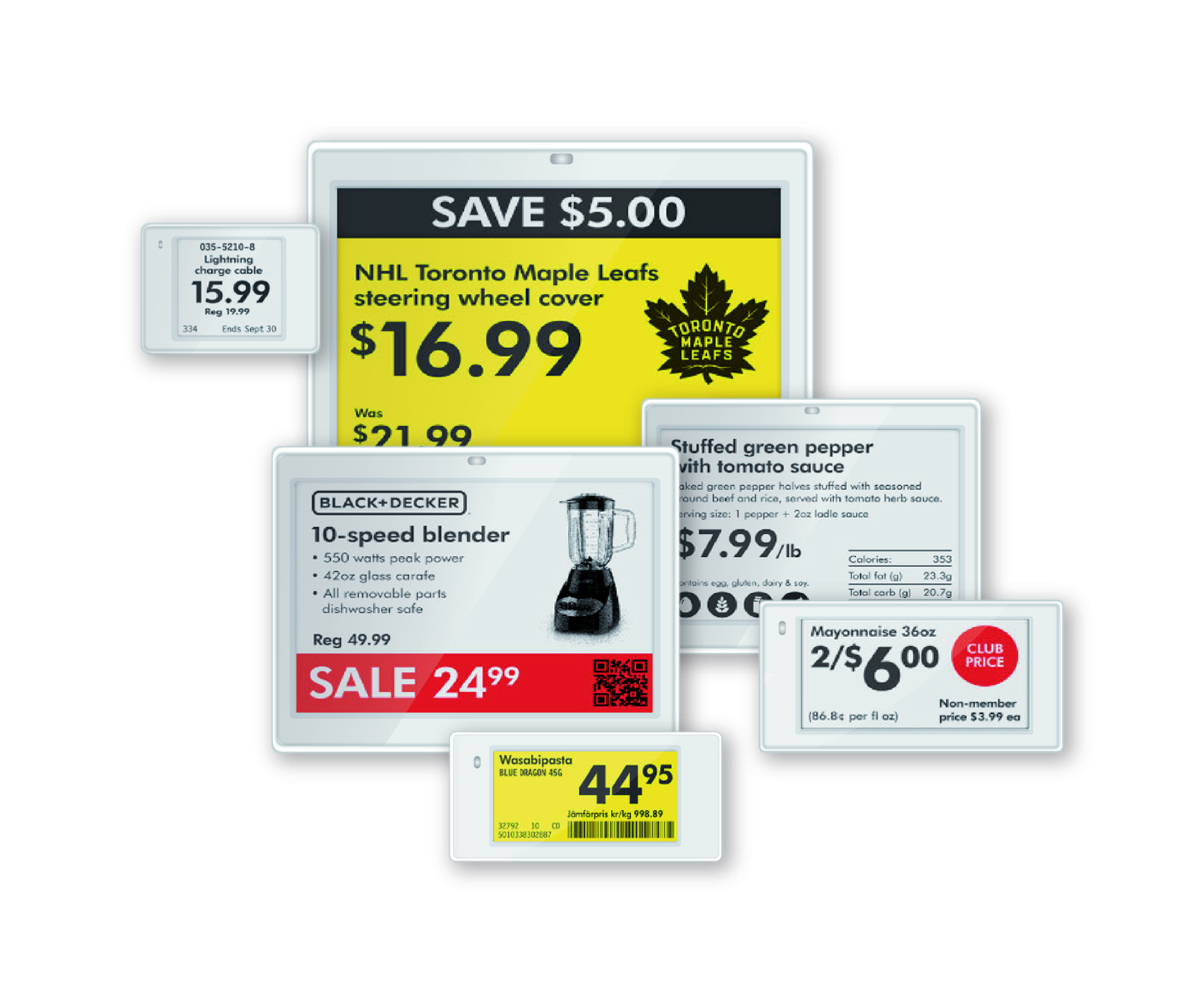

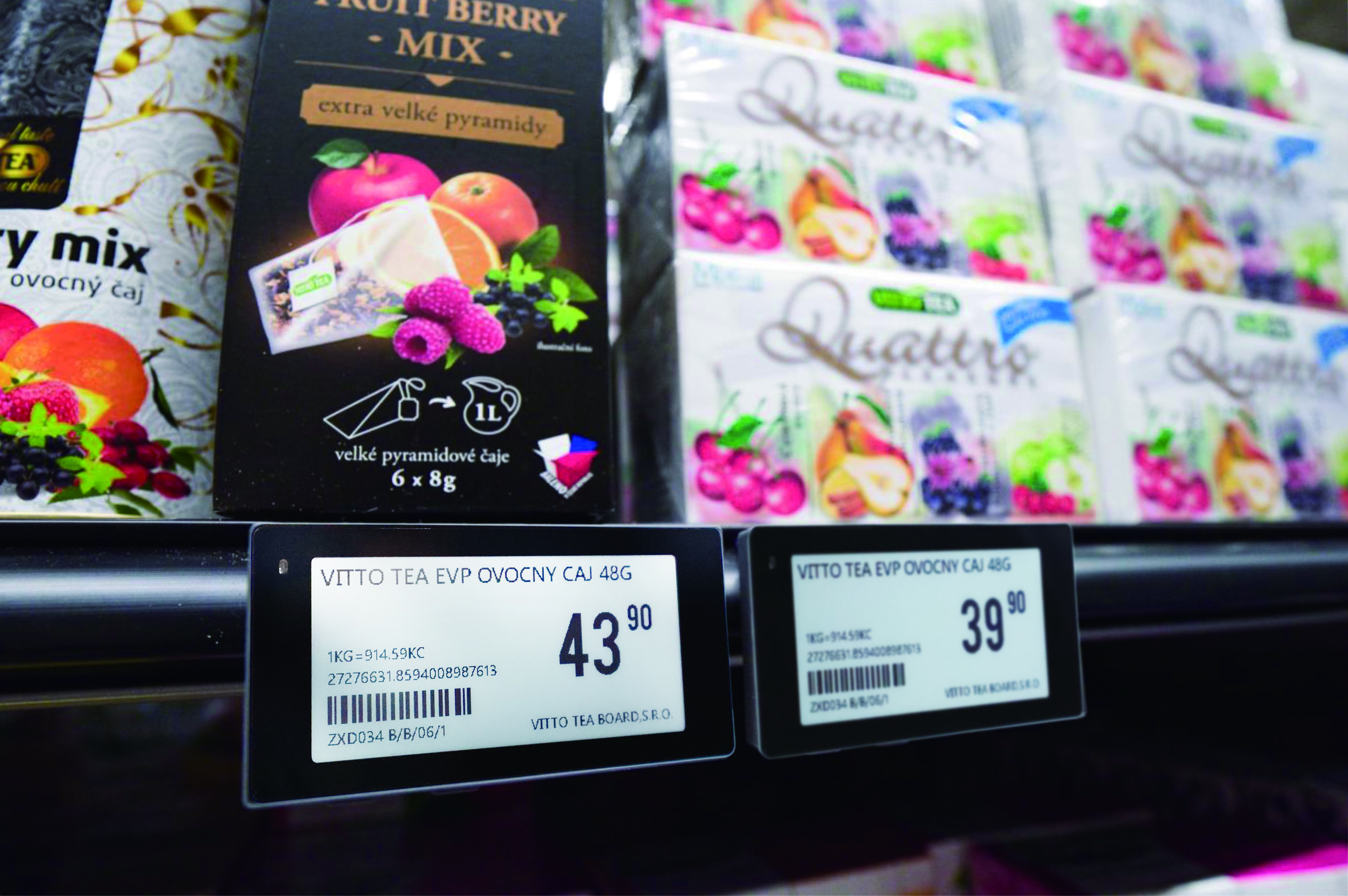

What is it ?

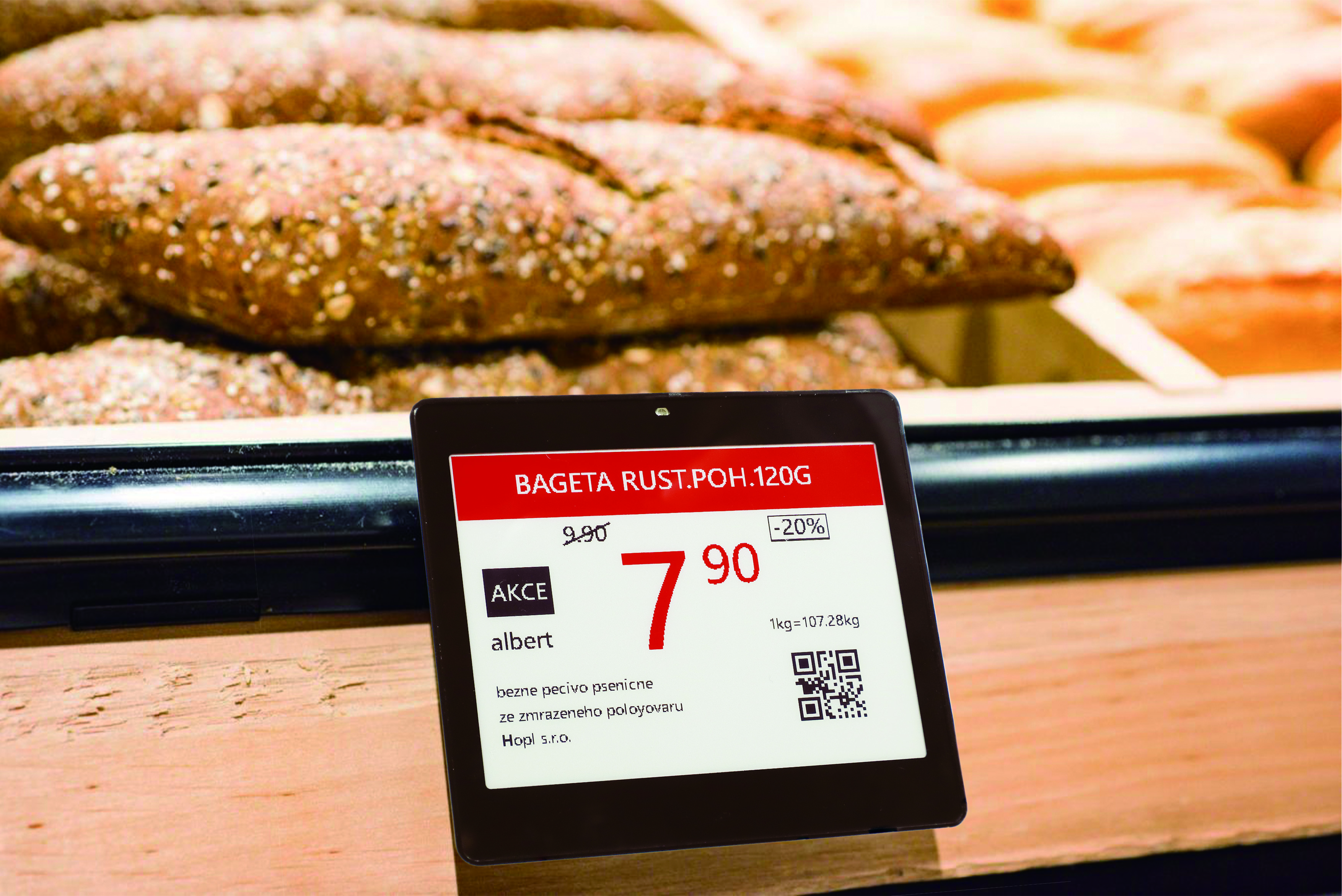

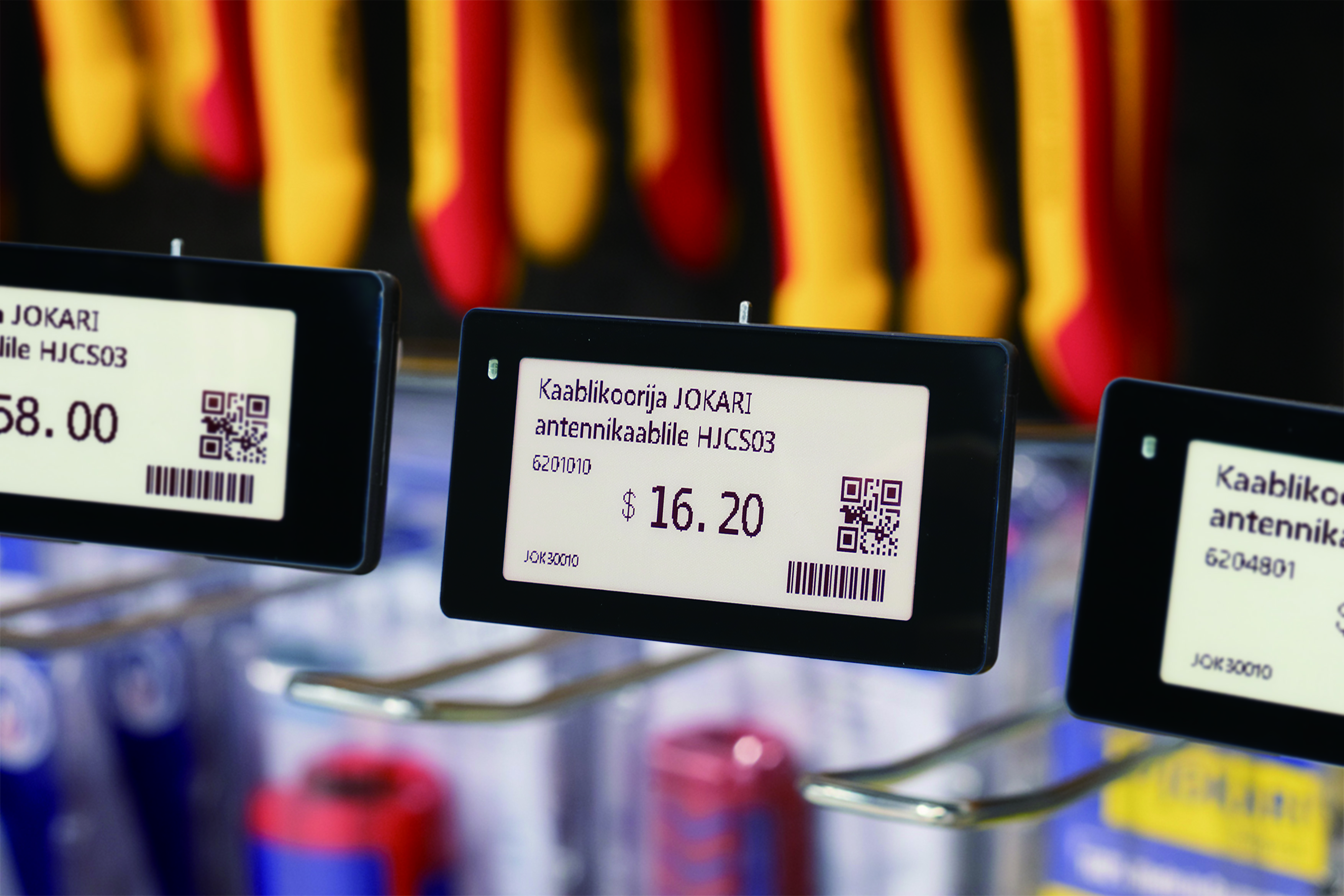

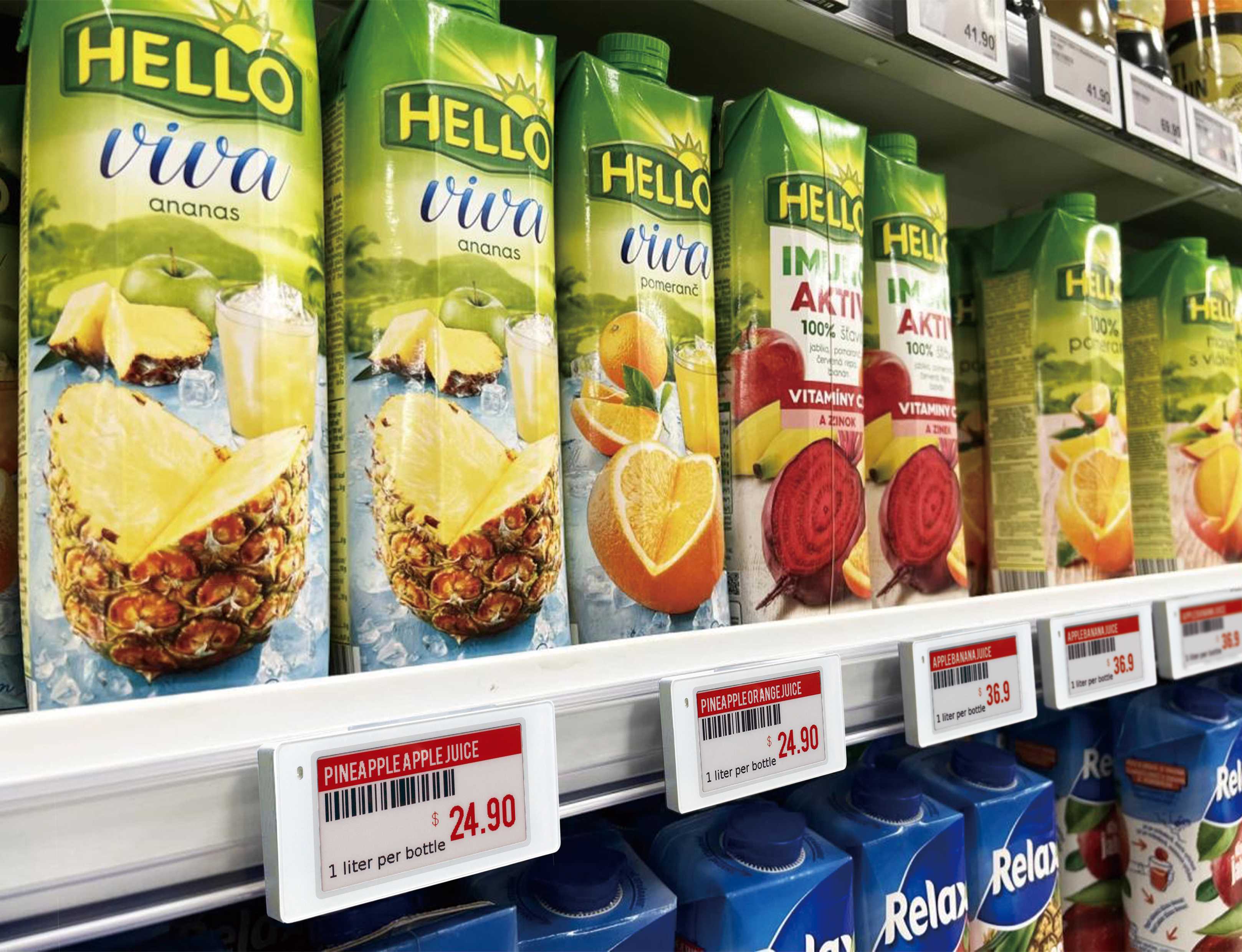

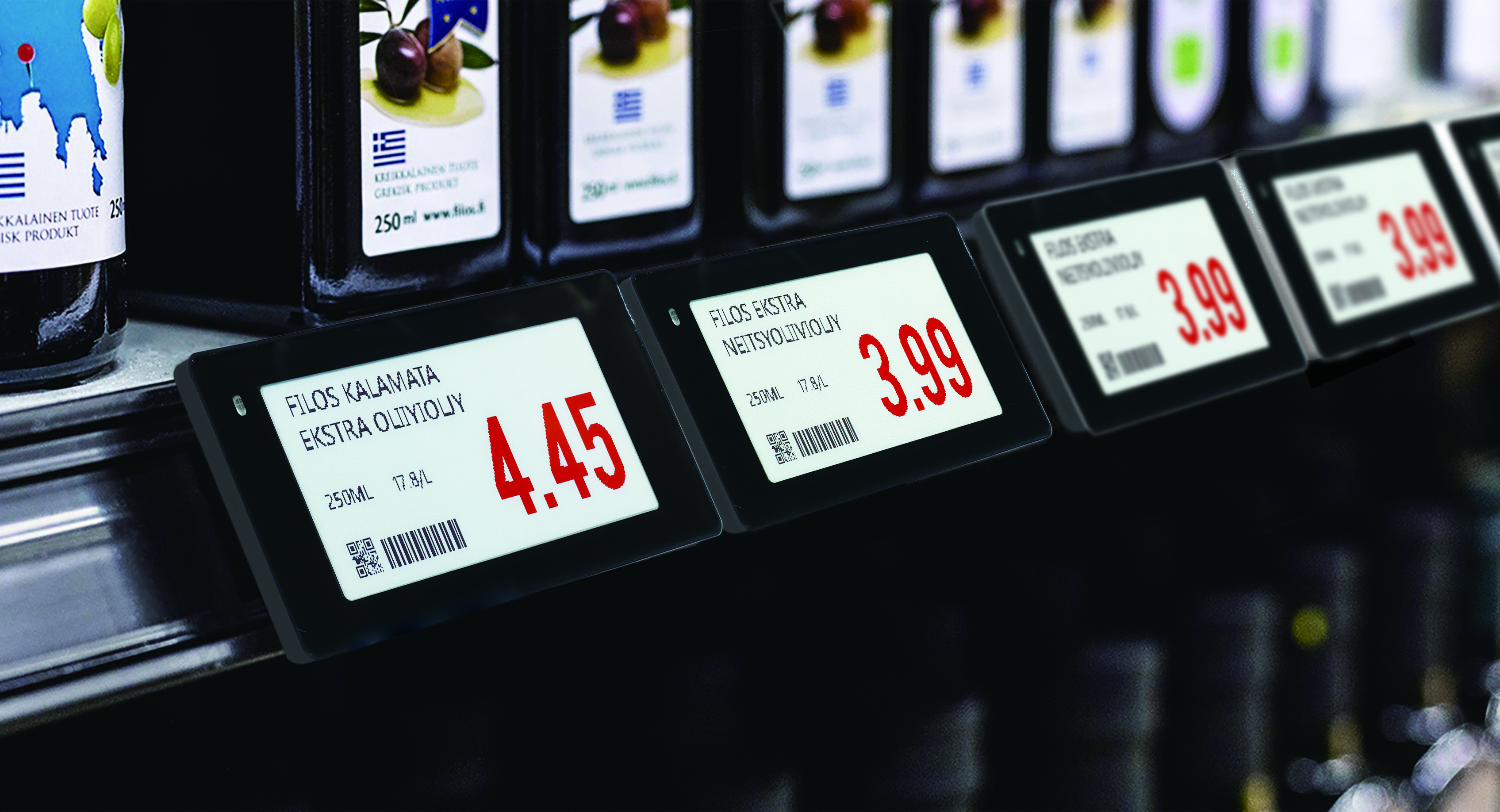

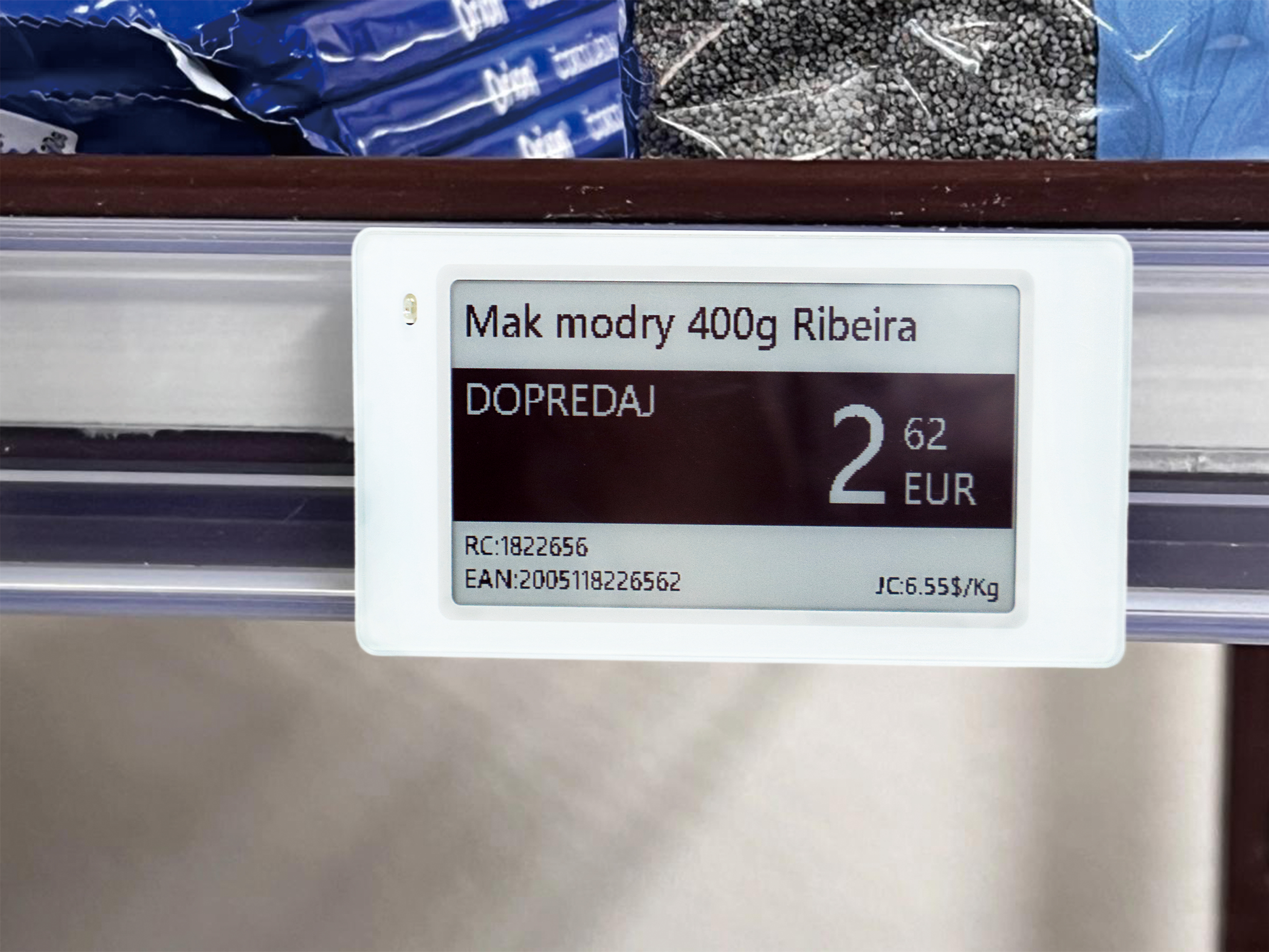

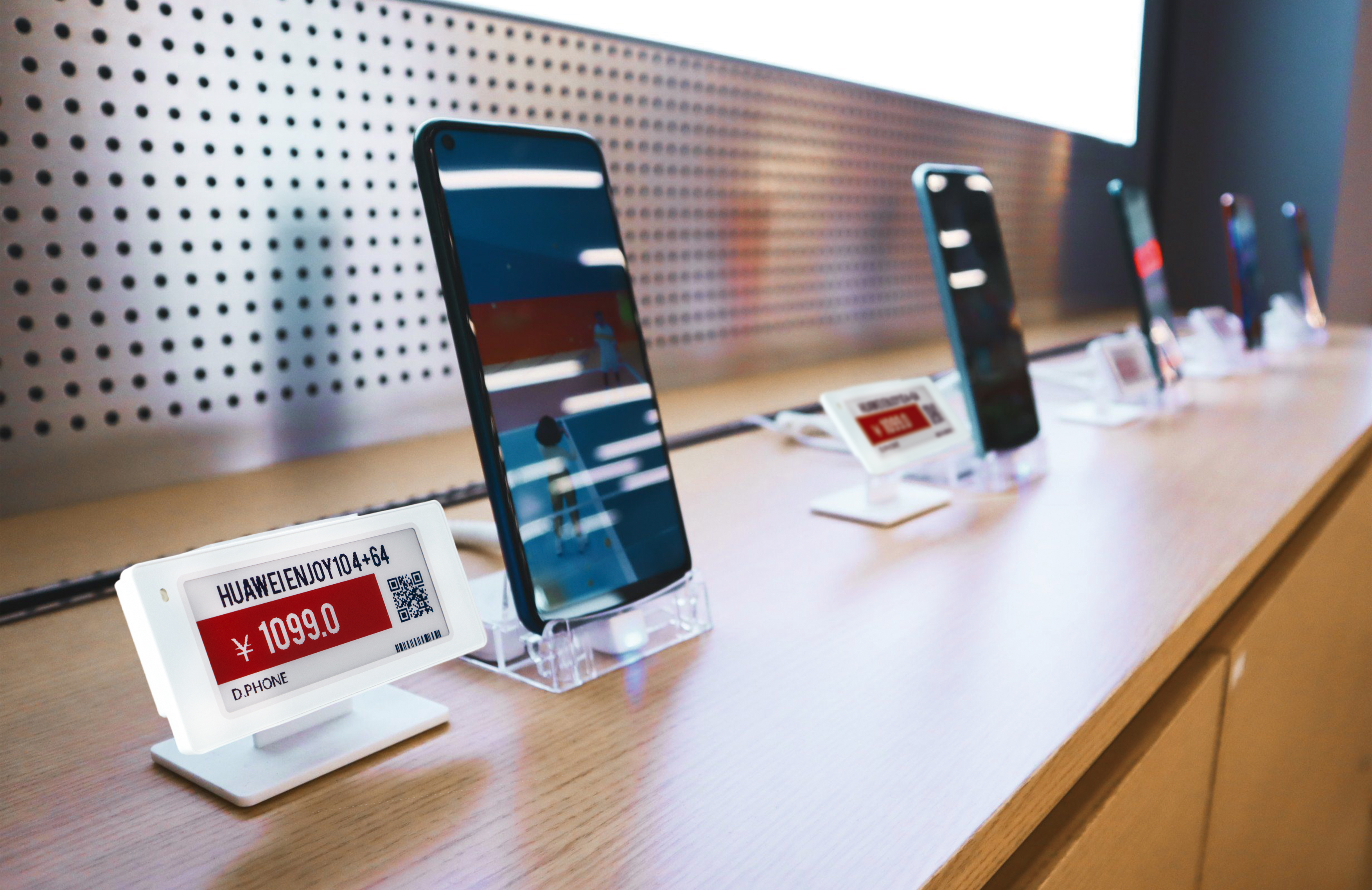

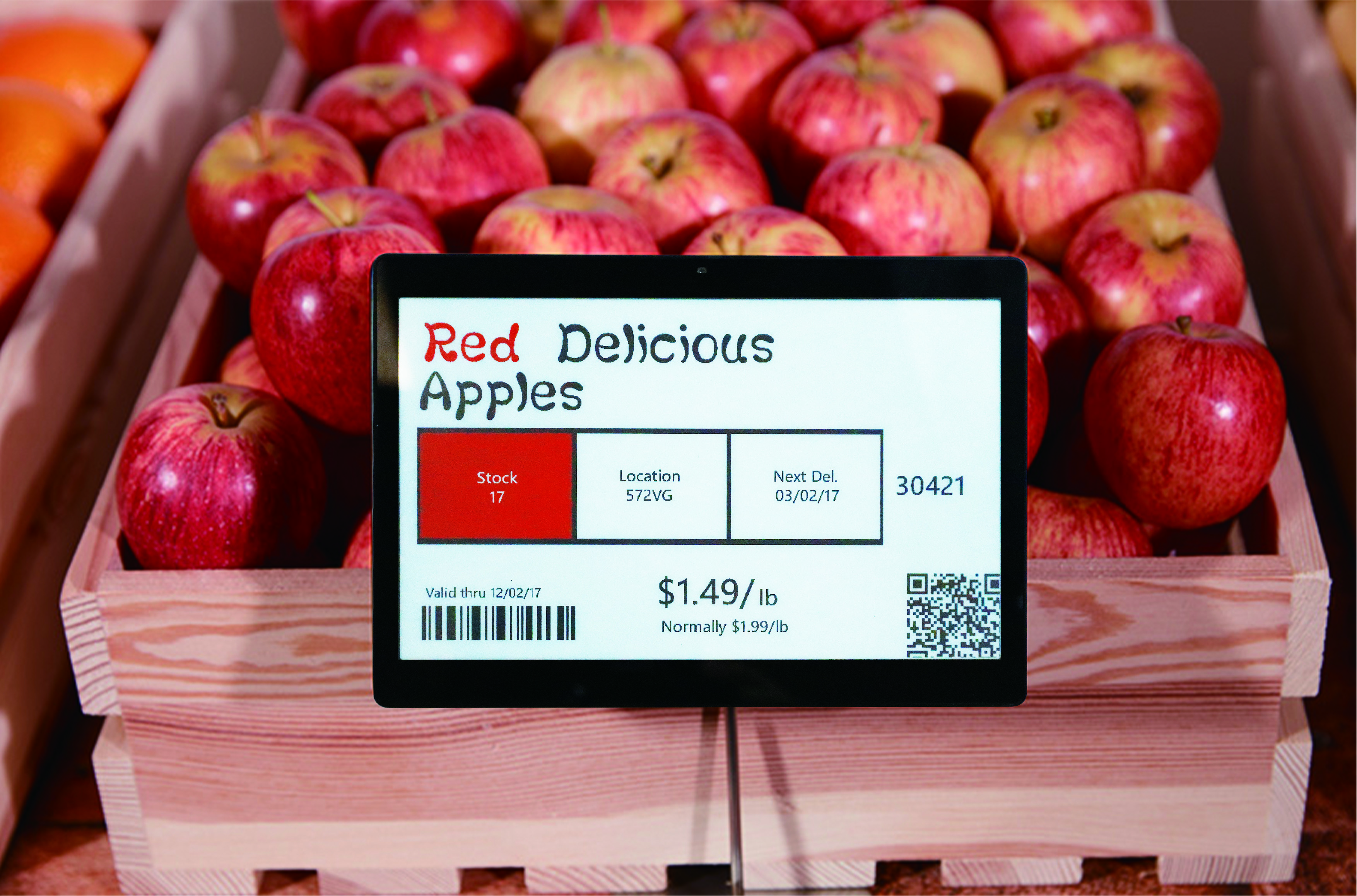

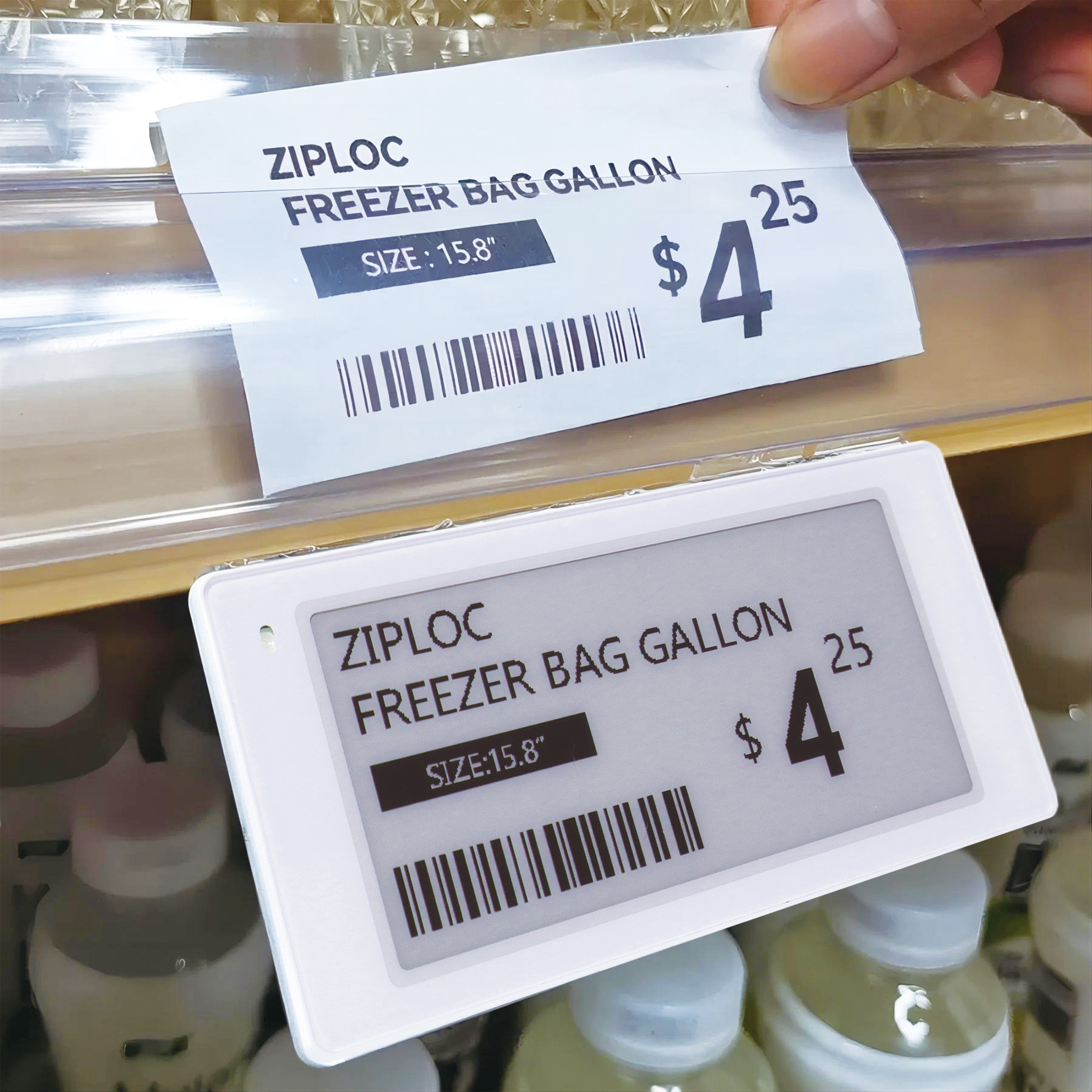

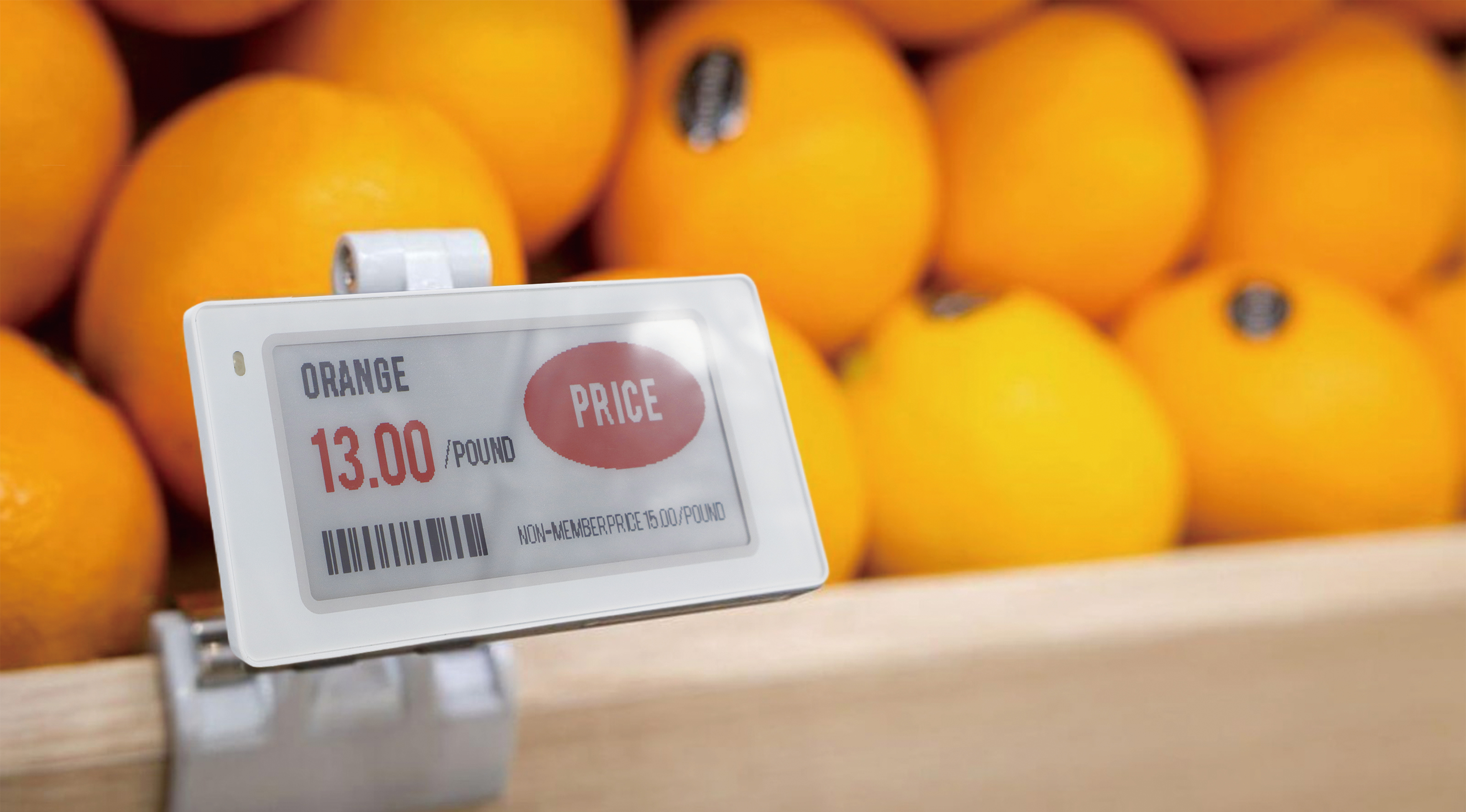

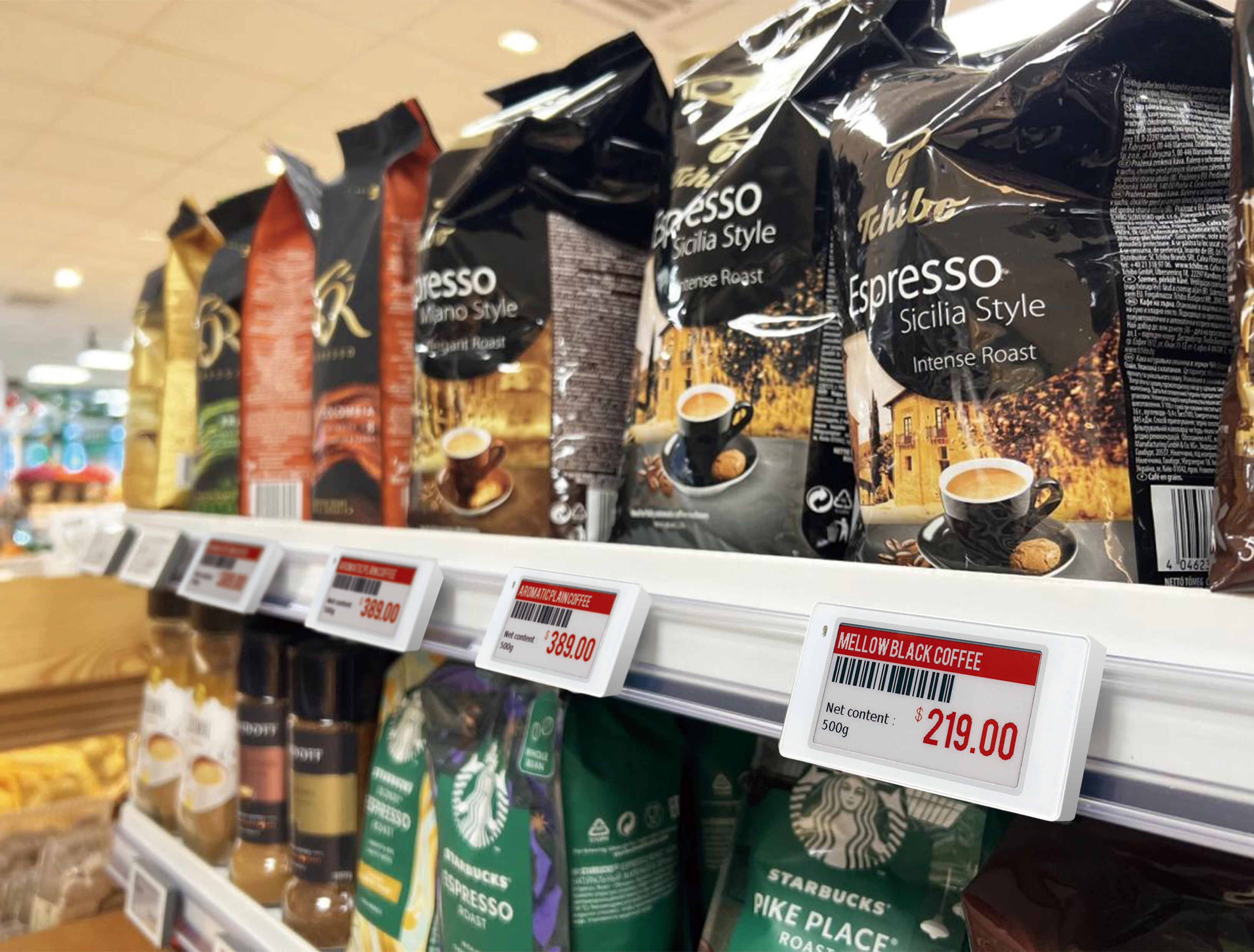

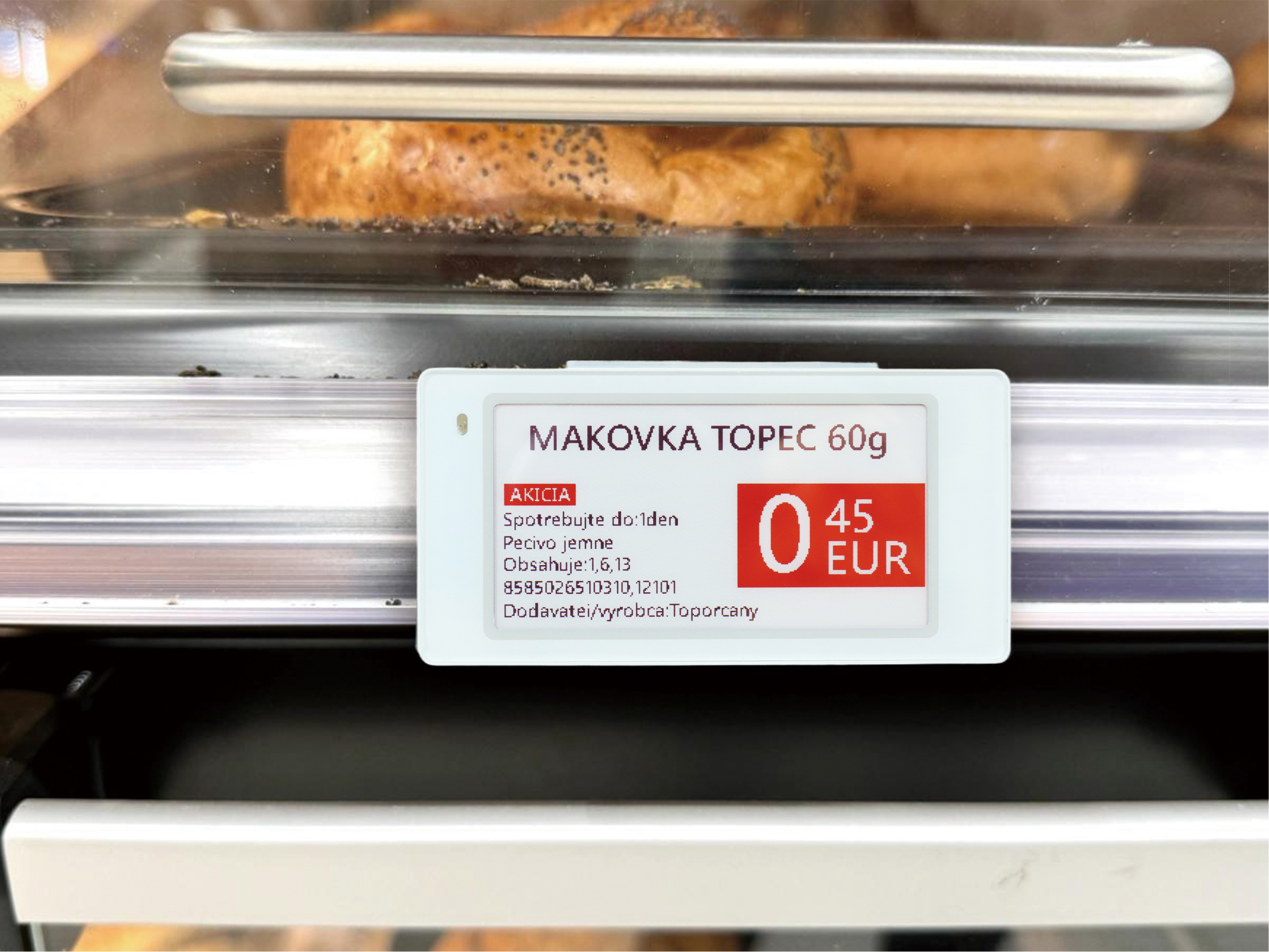

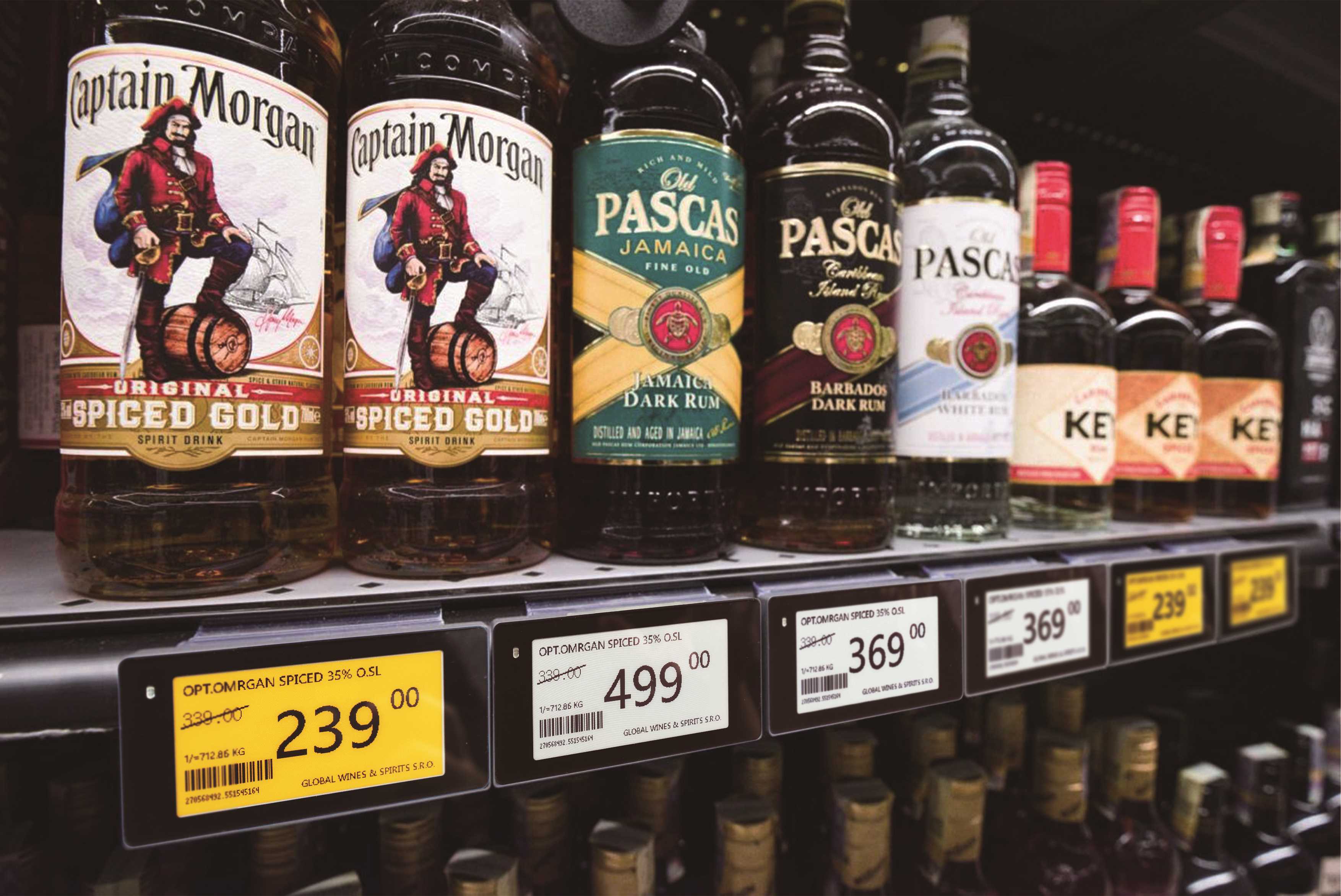

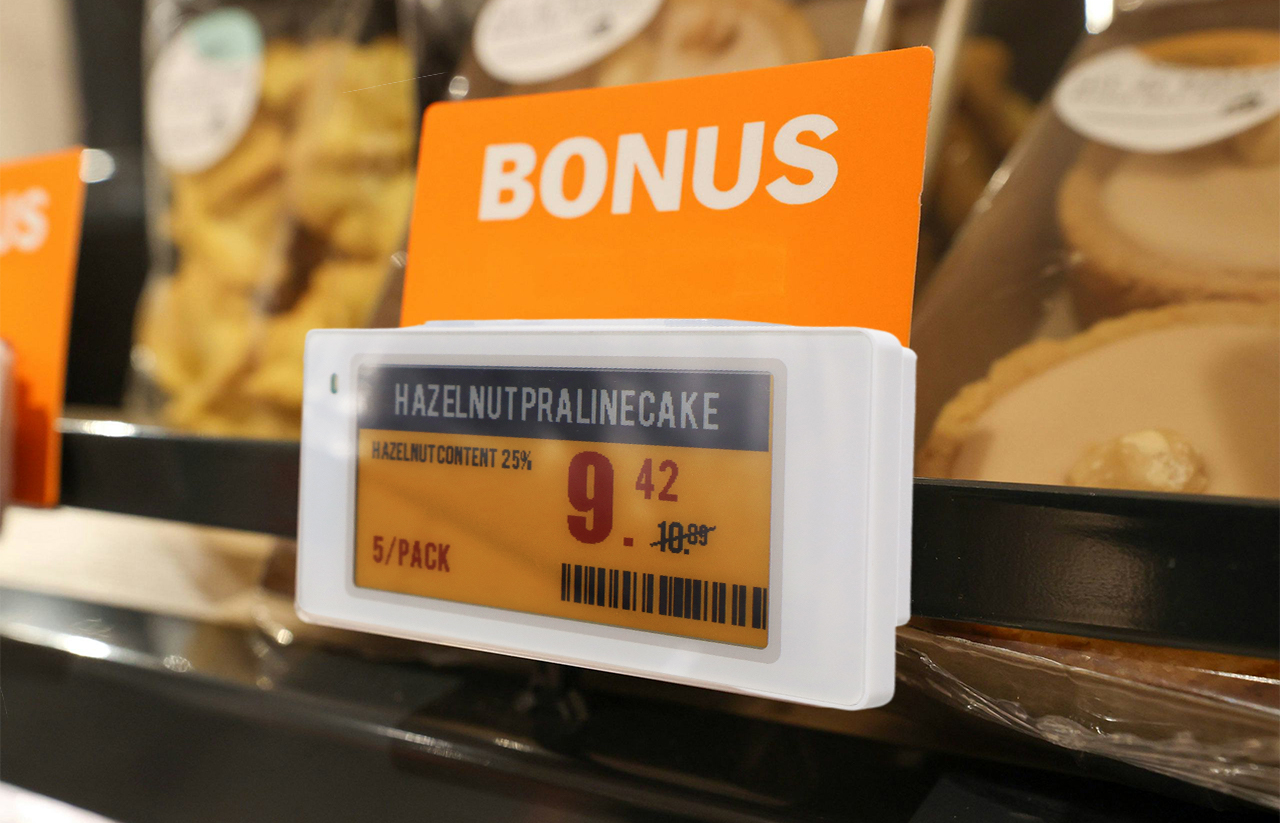

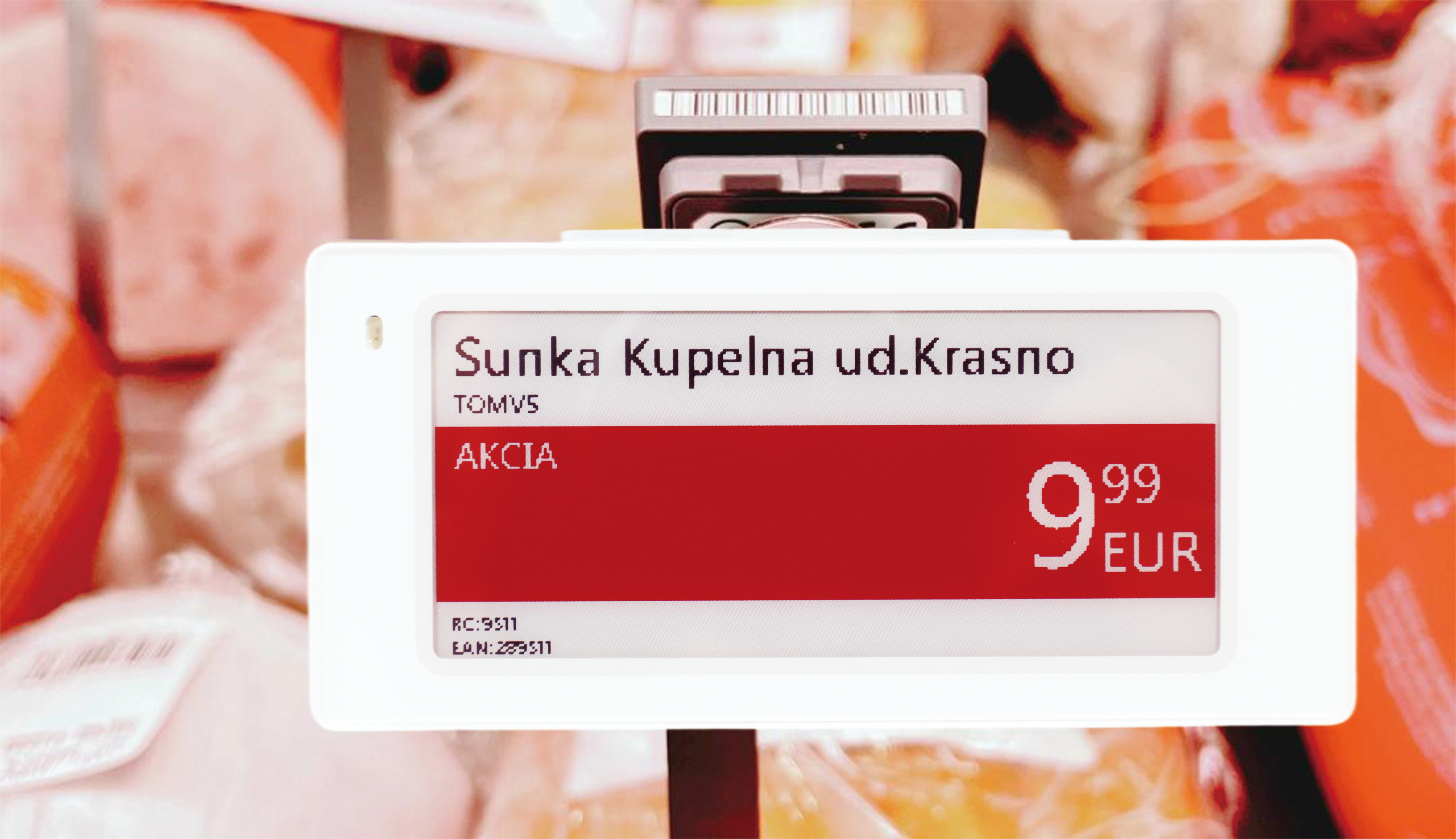

Electronic Shelf Labels (ESL) are wireless display labels with monitoring and notification functions. All our labels have a low power flash capacity giving clear visibility at the shelf edge, enabling product identification in real-time, enhanced promos and stock alerts. For retailers, these smart tags bring competitive advantages, drive margins and push out costs while building customer trust.

ESL Solutions offers IoT technology, the reliable price automation solutions. From battery longevity to speed and readability, the labels are designed to help retailers fulfill their operational strategy such as: centralizing product information, meeting omnichannel requirements, executing dynamic pricing, building their marketing strategy and developing unique shopping experience.

What are the advantages?
